产品规格书样本(DVD机芯).docx

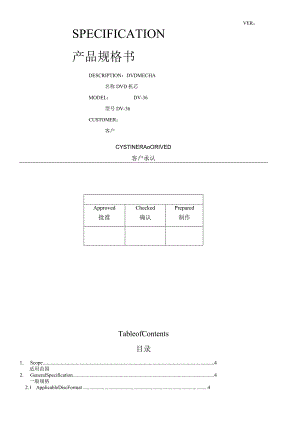

VER：SPECIFICATION产品规格书DESCRIPTION：DVDMECHA名称DVD机芯MODEL：DV-36型号DV-36CUSTOMER：客户CYSTlNERAoORIVED客户承认ApprovedCheckedPrepared批准确认制作TableofContents目录1. Scope4适用范围2. GeneralSpecification4一般规格2.1 ApplicableDiscFormat4支持碟片规格2.2 ApplicableDiscCapacity4支持碟片容量2.3 ApplicableDiscDiameter4支持碟片直径2.4 OperationEnvironment4工作环境条件2.5 PickUPMovingRange4光头驱动方式2.6 FeedingRatio4光头移动量2.7 PickUpMovingRange4光头移动范围2.8 OperationEnvironment4工作环境条件2.9 StorageEnvironment4保存环境条件2.10 Dimension4外形尺寸2.11 Weight4重量3. OpticMechanical&ElectricalSpecification5光学、机械及电气性能规格3.1 Mainparts5主要部品3.2 MechanicalSpecification5机械性能规格3.2.1MechanicalNoise5机械噪音3.2.2 SpindleMotor5主轴马达3.2.3 Trayin/outMotor5进给马达3.2.4 SledMotor6进出仓马达3.2.5 TurnTable6转盘-2-4. ConditionofperformanceEvaluation6性能评估条件4.1InstallAngle6放置角度4.1 EvaluationEnvironment6评价环境4.2 EvaluationDisc6评价碟片4.3 EvaluationEquipment7评价设备5. ReliabilityTest7可靠性保证5.1 ReliabilitySpecification7可靠性规格5.2 HighTemperatureOperationTest7高温动作试验5.3 LowTemperatureOperationTest7低温动作试验5.4 HighTemperatureStorageTest75.5 高温保存试验5.6 1.owTemperatureStorageTest7低温保存试验5.7 ConstantTemperatureandHumidityTest8恒定湿热试验5.8 SweptVibrationTest8扫频振动试验5.9 ImpactTest8碰撞试验5.10 DropTest8跌落试验5.11 MechanicalLifeTest9机械寿命试验6. SamplingExamination9抽样检查7. StandardQuoted9引用标准8. ConnectorDescription9端子说明9. Caution9使用注意事项10. Appendix10附录10.1 ConnectorDescription10/11端子说明：10.2 MechanicalDimensions12产品外形尺寸图1. Scope适用范围1.1 ThisspecificationtoDVDMechaforDVDplayer(model:KD-309).本规格书适用于DVD播放机用的DVDMecha(型号:KD-309);1.2 Anydoubttothespecificationcanberesolvedaccordingtotheagreementestablishedwithyourrelevantdepartment;对本规格书产生疑义时,可依据与贵司的有关部门达成的协议解决；1.3 Forimprovingperformancepurpose,thisspecificationissubjecttochangeaccordingtopre-agreementestablishedbetweenus;为了改善产品性能，本协议书的内容可以依据双方的事前协议进行变更；1.4 Hardwareandsoftwareormanufacturingprocessmaysubjecttochangeforimprovementswithintherangeofthespecifications;在满足本规格书的范围内，为改善产品性能可能会对硬件、软件或制造工艺进行变更；2. GeneralSpecifications一般规格2.1 DiscLoadingMode进碟模式，motordriverfrontloadingtray马达驱动方进仓2.2 Discfixing碟片固定时Beammagneticfixation弱磁固定2.3 ApplicableDiskDiameter:支持碟片直径：12厘米，8厘米2.4 Regulatemode：3pointsregulate调整方式：3点调整2.5 PickUpDrivingMode:ReductionGearAndRackDrive光头驱动方式：减速齿轮和齿条驱动2.6 FeedingRation:0.5mmrpm(SledMotorRotationOneCircle)光头移动量：0.5mmrpm(进给马达旋转一周)2.7 PickUpMovingRange:22.6±0.3一59±0.4mm(BeginFromCenterOfTurnTable)光头移动范围：22.6±0.359±0.4mm从转盘中心开始2.8 OperationEnvironment工作环境条件Temperature温度0oC-45oCHumidity湿度20%80%RHAtmosphericpressure大气压85106KPa2.9StorageEnvironment：保存环境条件Temperature：温度-30oC-60CHumidity：湿度5%90%RHAtmosphericpressure：大气压85106KPa、2.10 Dimension:180mm×133.8mm×29mm(L×W×H)外形尺寸：长180厘米,宽133.8厘米,高29厘米2.11 Weight：approximately260g重量约260克-4-3. Optic, Mechanical & Electric SPeCifiCation 光学、机械及电气性能规格3. 1 Main PartS 主要部品Spindle motor: 主轴马达ManUfaCtUrCrS :盟升/三盛/万宝至等Sled motor: 进给马达ManUfaCtUrCrS :盟升/三盛/万宝至等Tray in/out Motor 进出仓马达ManUfaCtUrerS :盟升/三盛/万宝至等Pick-up: 光头Manufacturers: Samsung DL6FS Sanyo IID850 Sony313 等3.2MechanismSpecifications机械性能规格3.2.1 MeChaniCaINoiSe机械噪音Backgroundnoiseislessthen25dB,measuredatIoOmmdistance,mechanicalnoise：背单噪音小于为25dB,在100mm距离测量机啊噪音PIay播放时50dBmax3.2.2SPINDLEMOTOR主轴马达ITEM项目SPEC规格REMARKS备注RATEDVOLTAGE额定电压3VDCVOLTAGERANGE使用电压范围4.5-6.OVDCRATEDLOAO额定负荷12cmnormalloadRATEDSPEED额定转速2500÷400rpmMinRatedLoadRatedVoltageRATEDCURRENT额定电流105mAMaxRatedLoadRatedVoltageSTARTINGTORQUE启动转矩1.323Mn,mMinRatedVoltageNOLOADSPEED空载转速3500÷450rpmNoloadRatedVoltageNOLOADSPEED空载电流45mAMaxNoloadRatedVoltageSTARTINGCURRENT启动电流450mAMaxRatedVoltage3.2.3SLEDMOTOR进给马达ITEM项目SPEC规格REMARKS备注RATEDVOLTAGE额定电压2VVOLTAGERANGE使用电压范围0.56RATEDLOAO额定负荷4g-cmRATEDSPEED额定转速1600±200rpmRatedLoad,3VRATEDCURRENT额定电流65mA以下RatedLoad,3VSTARTINGTORQUE启动力矩最小为14g3VNOLOADSPEED无负荷转速2200÷200rpmNoLoad,3VSTATINGCURRENT启动电流最大为245mA3V3.2.4 TRAYIN/OUTMOTOR进出仓马达ITEM项目SPEC规格REMARKS备注RATEDVOLTAGE额定电压2VVOLTAGERANGE使用电压范围16RATEDLOAO额定负荷4g-cmRATEDSPEED额定转速1600±200rpmRatedLoad,3VRATEDCURRENT额定电流65mA以下RatedLoad,3VSTARTINGTORQUE启动力矩最小为14g3VNOLOADSPEED无负荷转速2200+200rpmNoLoad,3VSTATINGCURRENT启动电流最大为245mA3V3.2.5 TURNTABLE转盘ITEM项目SPEC规格REMARKS备注TURNTABLEHIGHT转盘高度8÷0.15mmUPFACEORCHASSISFORDATUMLANE以CHASSIS的上表面为基准TURNTABLETILT转盘斜度MAX0.25o0.5°以下TURNTABLERUNOUT端面跳动MAX0.06mm0.06mm以下ECCENTRICITY偏心MAX0.06mm0.06mm以下AXIALLOAD耐压负荷MIN49N(5Kg)49N(5Kg)以上BETWEENTURNTABLEANDMOTORSHAFT转盘与马达之间的耐压力SLIPPINGTORQUR打滑力距MINI.96×10-2N.M(200gf.Cm)MINI.96×10-2N.M(200g
